Multi-Tooth End Mill Diamond Ø6,00
twisted angle | Teeth-count: 8 | Cutting edge length L2: 3,00 mm | Radius: 0,05 mm

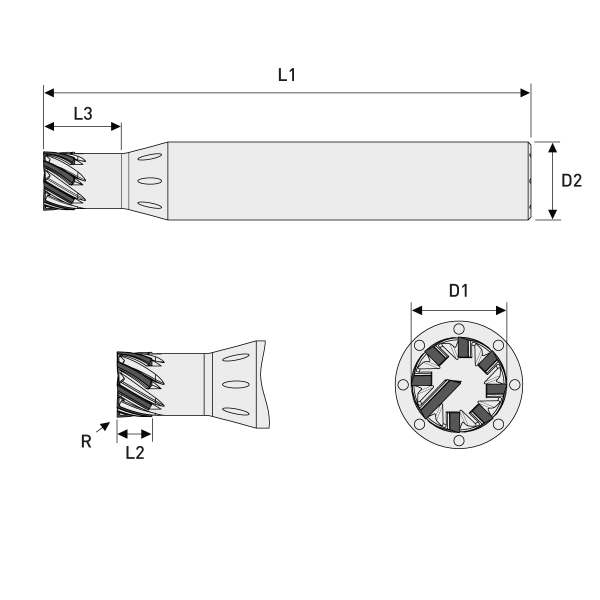

*Abbildung dient zur Veranschaulichung [Fräser kann fertigungsbedingt abweichen]
- Order number: FS2050-4730
| Cutting material: | CVD-D |
| Line: | MZ-Line |
| D1 diameter: | 6,00 mm |
| D2 Shank diameter: | 8h5 |
| D3 Neck diameter: | 5,65 mm |
| L1 Total length: | 50 mm |
| L2 Cutting length: | 3,00 mm |
| L3 max. machining depth: | 8,00 mm |
| Corner radius: | 0,05 mm |
| Radius tolerance: | ± 0,002 mm |
| Internal cooling: | Yes |
| Length tolerance: | ± 1,00 mm |
| Over center position: | Yes |
| Teeth-count: | 8 |
| Shank version: | Carbide |
| Version: | With twisted angle |
