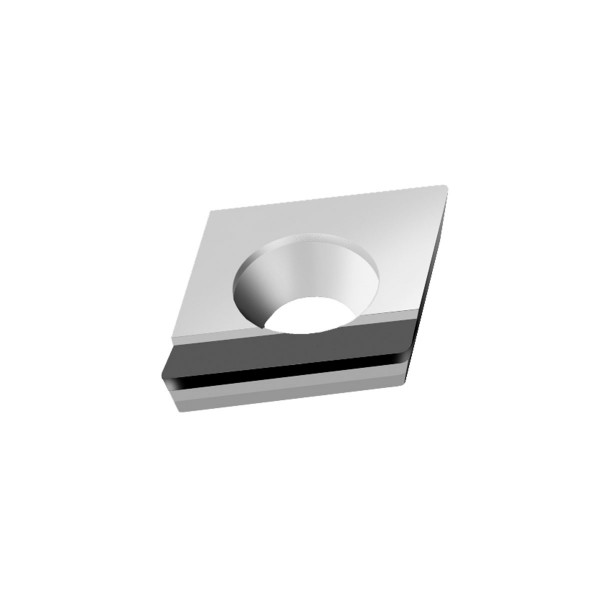

CCGT 060202 CVD-D

positive rake angle | right version

: CCGT 060202 CVD-D : CCGT 060202 CVD-D
CCGT 060202 CVD-D
CCGT 060202 CVD-D

  • Order number: DP2020-0055
Close menu

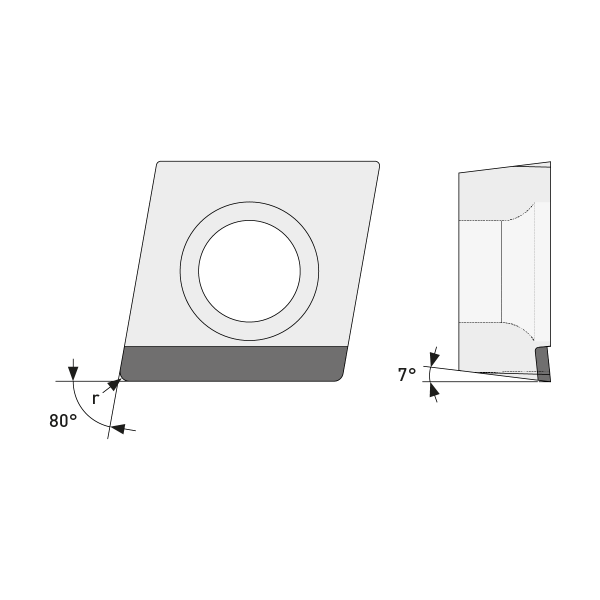

Technical details:

Cutting material: CVD-D
ISO-Basic shape: C (80°)
Clearance angle: C (7°)
Tolerance: G
Insert type: T (positive rake angle)
Insert size: 06
Insert thickness: 02 (2,38 mm)
Radius: 02 r=0,2
Radius tolerance: ± 0,015 mm
Rake angle: Yes
Version: Right Version
Cutting edge version: entire edge
Application area: Turning

Application range:

  • Titanium
  • Copper
  • Magnesium
  • Brass
  • Brass lead free
  • Tungsten alloy
  • Acrylic (PMMA)
  • CFRP
  • GRP
  • Glass
  • Glass ceramic
  • Carbide >10%Co
  • Ceramics
  • Plastics
  • Copper alloy
  • MMC
  • Gold
  • Silver
  • Platinum
  • Zircon
  • Aluminum >10% Si
Clamp Holder external machining 2 Clamp Holder internal machining 14
Clamp Holder external machining 2
SCLCR 1010E 06
SCLCR 1010E 06
  • Angle of attack holder: L (95°)
  • Holder cross section: 10,00x10,00

KL7060-0010

SCLCL 1010E 06
SCLCL 1010E 06
  • Angle of attack holder: L (95°)
  • Holder cross section: 10,00x10,00

KL7060-0011

Clamp Holder internal machining 14
A08F SCLCR 06
A08F SCLCR 06
  • right Version
  • Shaft diameter: 8,00 mm

BW7060-0010

A08F SCLCL 06
A08F SCLCL 06
  • left Version
  • Shaft diameter: 8,00 mm

BW7060-0011

A10H SCLCR 06
A10H SCLCR 06
  • right Version
  • Shaft diameter: 10,00 mm

BW7060-0012

A10H SCLCL 06
A10H SCLCL 06
  • left Version
  • Shaft diameter: 10,00 mm

BW7060-0013

A12K SCLCR 06
A12K SCLCR 06
  • right Version
  • Shaft diameter: 12,00 mm

BW7060-0014

A12K SCLCL 06
A12K SCLCL 06
  • left Version
  • Shaft diameter: 12,00 mm

BW7060-0015

E08K SCLCR 06
E08K SCLCR 06
  • right Version
  • Shaft diameter: 8,00 mm

BW6060-0020

E08K SCLCL 06
E08K SCLCL 06
  • left Version
  • Shaft diameter: 8,00 mm

BW6060-0021

E10K SCLCR 06
E10K SCLCR 06
  • right Version
  • Shaft diameter: 10,00 mm

BW6060-0034

E10K SCLCL 06
E10K SCLCL 06
  • left Version
  • Shaft diameter: 10,00 mm

BW6060-0035

E08X SCLCR 06
E08X SCLCR 06
  • right Version
  • Shaft diameter: 8,00 mm

BW6060-1020

E08X SCLCL 06
E08X SCLCL 06
  • left Version
  • Shaft diameter: 8,00 mm

BW6060-1021

E10X SCLCR 06
E10X SCLCR 06
  • right Version
  • Shaft diameter: 10,00 mm

BW6060-1034

E10X SCLCL 06
E10X SCLCL 06
  • left Version
  • Shaft diameter: 10,00 mm

BW6060-1035
