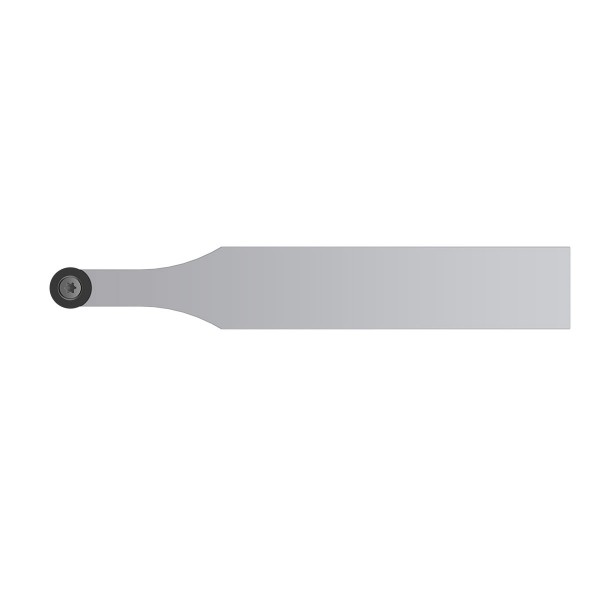

SRDCN 1010E 06
Angle of attack holder: D (45°) | Holder cross section: 10,00x10,00
- Order number: KL7060-0200

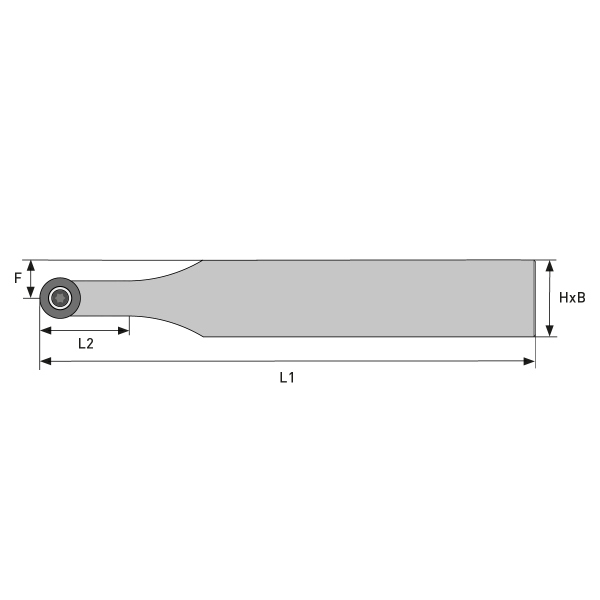

Technical details:
| Shank height H: | 10,00 mm |
| B Shank width: | 10,00 mm |
| Indexable inserts clearance angle: | C (7°) |
| Clamping system: | S (screws clamping system) |
| Cutting edge length WSP: | 06 |
| Turning inserts basic shape: | R (360°) |
| L1 Total length: | E (70,00 mm) |
| Angle of attack holder: | D (45°) |
| Rotary holder version: | N (neutral) |
| F: | 5,00 mm |
Matching Turning Inserts:
 |  |  |
