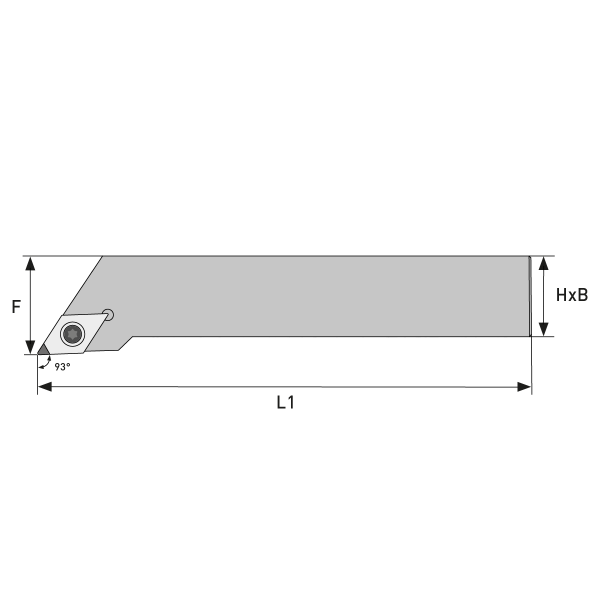

SDJCR 1212F 11
Angle of attack holder: J (93°) | Holder cross section: 12,00x12,00
- Order number: KL7060-0082
Technical details:
| Shank height H: | 12,00 mm |
| B Shank width: | 12,00 mm |
| Rotary holder version: | R (right) |
| Indexable inserts clearance angle: | C (7°) |
| Clamping system: | S (screws clamping system) |
| Turning inserts basic shape: | D (55°) |
| Cutting edge length WSP: | 11 |
| L1 Total length: | F (80,00 mm) |
| F: | 16,00 mm |
| Angle of attack holder: | J (93°) |
Matching Turning Inserts:
 |  |  |  |
