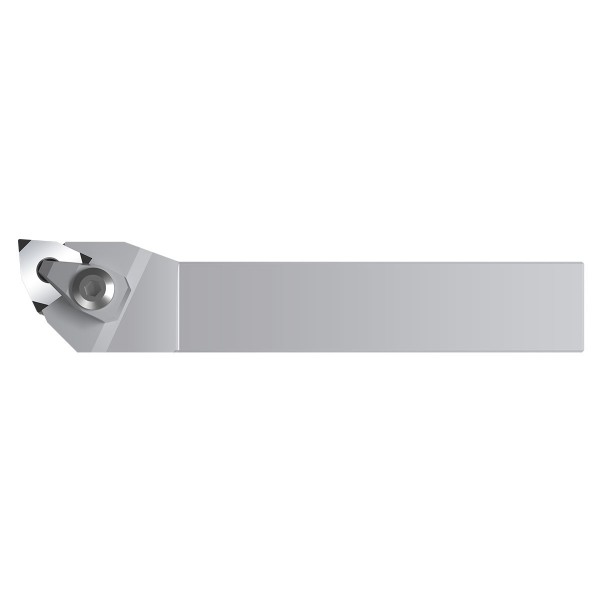

DWLNL 2020K 08
Angle of attack holder: L (95°) | Holder cross section: 20,00x20,00
- Order number: KL7060-0551
Technical details:

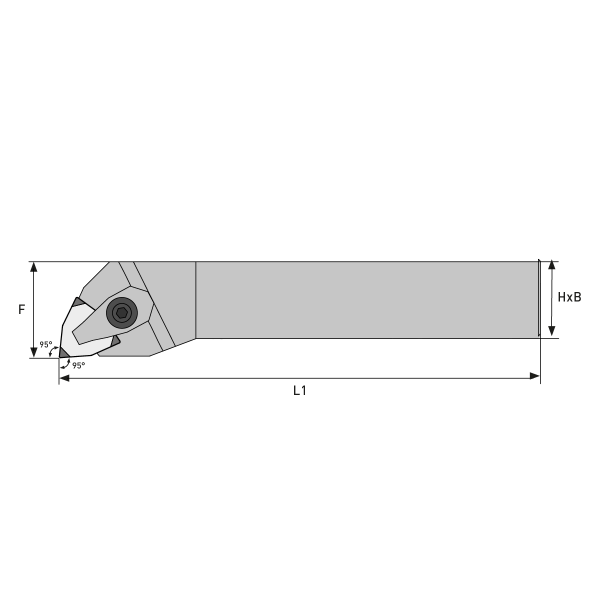

| Shank height H: | 20,00 mm |
| B Shank width: | 20,00 mm |
| Turning inserts basic shape: | W (80°) |
| Rotary holder version: | L (links) |
| Angle of attack holder: | L (95°) |
| L1 Total length: | K (125,00 mm) |
| Cutting edge length WSP: | 08 |
| Indexable inserts clearance angle: | N (0°) |
| F: | 25,00 mm |
| Clamping system: | D (double clamping system) |
Matching Turning Inserts:
 |
