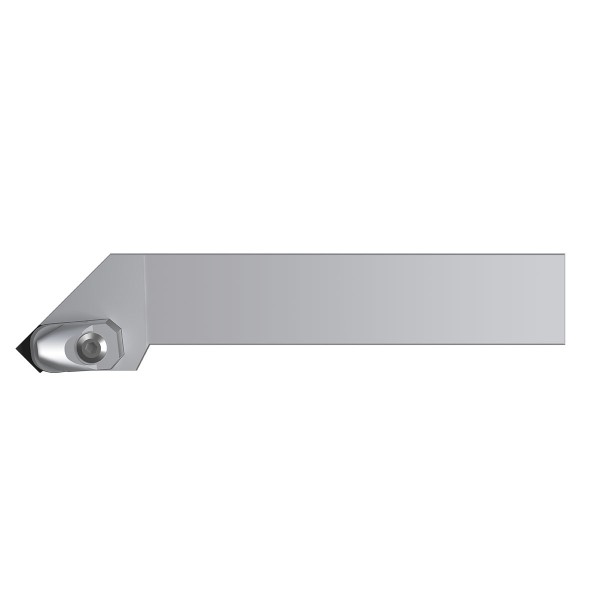

CSSNR 2525M 1204
Angle of attack holder: S (45°) | Holder cross section: 25,00x25,00
- Order number: KL7060-0332

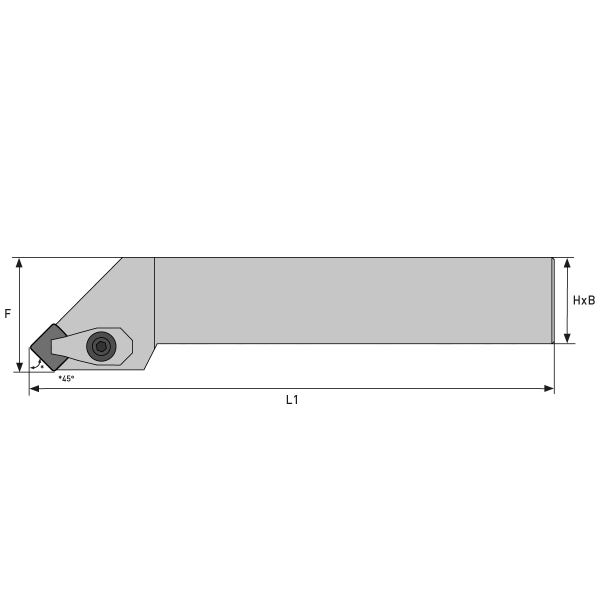

Technical details:
| Shank height H: | 25,00 mm |
| B Shank width: | 25,00 mm |
| Rotary holder version: | R (right) |
| L1 Total length: | M (150,00 mm) |
| Cutting edge length WSP: | 12 |
| Clamping system: | C (clamping lever clamping) |
| Indexable inserts clearance angle: | N (0°) |
| F: | 32,00 mm |
| Angle of attack holder: | S (45°) |
| Turning inserts basic shape: | S (90°) |
Matching Turning Inserts:
 |
