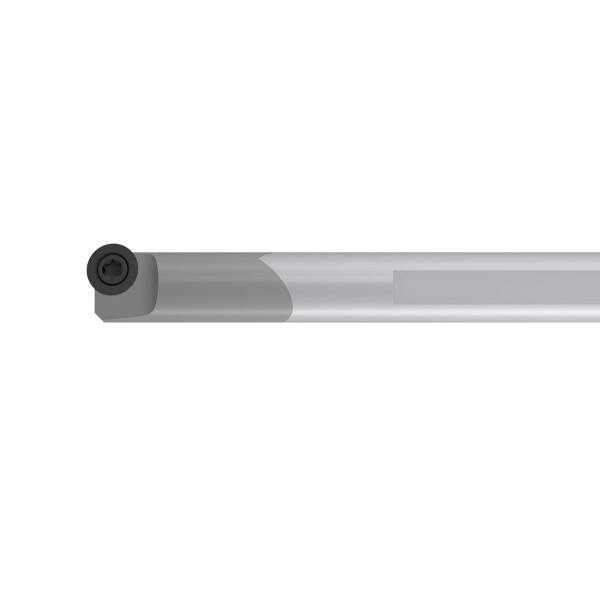

MT08X SRLCL 06
left Version | Shaft diameter: 8,00 mm
- Order number: BW6060-1025

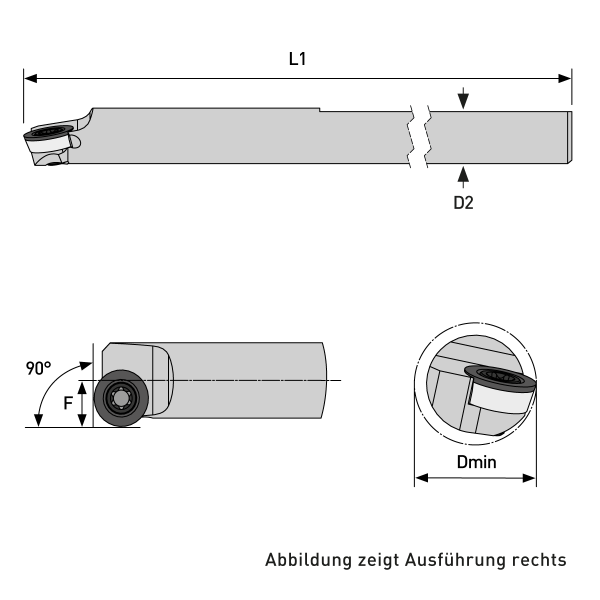

Technical details:
| Angle of attack holder: | L (95°) |
| Dmin: | 10,00 mm |
| D2 Shank diameter: | 8h6 |
| Rotary holder version: | L (links) |
| F: | 5,00 mm |
| tx: | 1,00 mm |
| Cutting edge length WSP: | 06 |
| Clamping system: | S (screws clamping) |
| L1 (X) Gesamtlänge: | 125,00 mm |
| Shank version: | MT (MiniTool-Shank with internal cooling) |
| Indexable inserts clearance angle: | C (7°) |
| Turning inserts basic shape: | R (360°) |
Matching Turning Inserts:
 |  |  |
