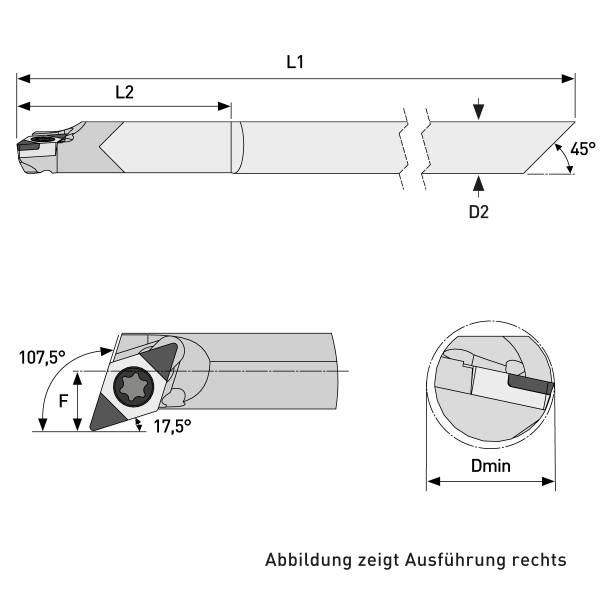

E08X SDQCR 07
right Version | Shaft diameter: 8,00 mm
- Order number: BW6060-1022
Technical details:
| Angle of attack holder: | Q (107,5°) |
| Dmin: | 12,00 mm |
| D2 Shank diameter: | 8h6 |
| Rotary holder version: | R (right) |
| F: | 7,00 mm |
| Adjustment bevel (45°): | Yes |
| Edge length: | 07 |
| Clamping system: | S (screws clamping) |
| L1 Total length: | X (125,00 mm) |
| Shank version: | E (carbide shank with internal cooling) |
| Indexable inserts clearance angle: | C (7°) |
| Turning inserts basic shape: | D (55°) |
 |  |  |  |
