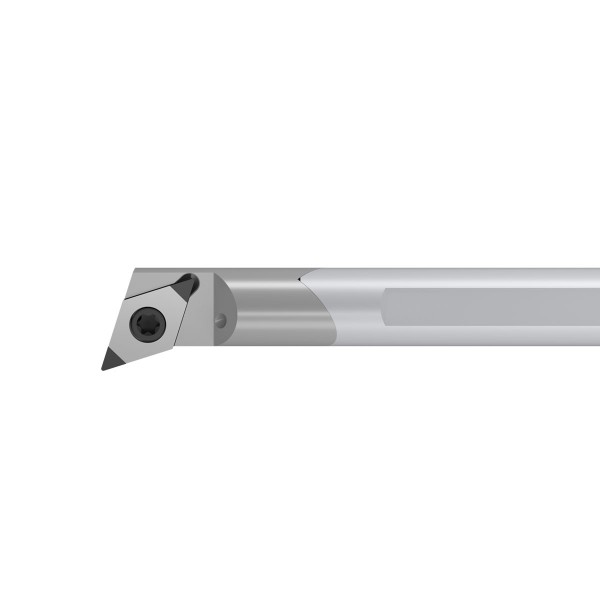

E16R SDQCR 11
right Version | Shaft diameter: 16,00 mm
- Order number: BW6060-0060

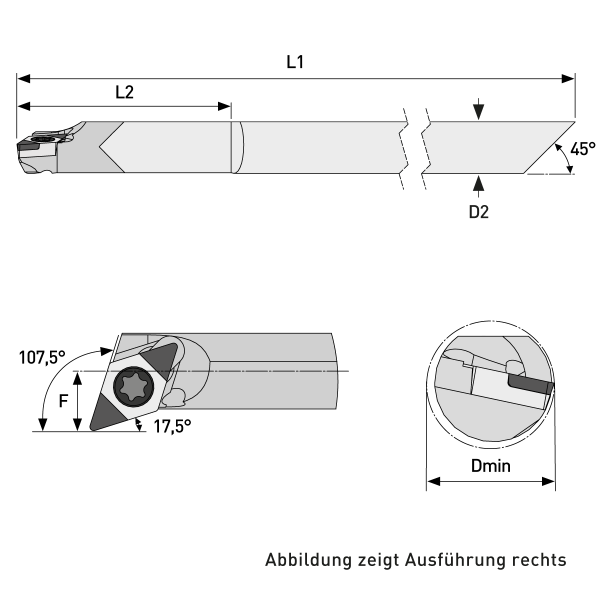

Technical details:
| Angle of attack holder: | Q (107,5°) |
| Dmin: | 20,00 mm |
| D2 Shank diameter: | 16h6 |
| Rotary holder version: | R (right) |
| F: | 11,00 mm |
| Cutting edge length WSP: | 11 |
| Clamping system: | S (screws clamping) |
| L1 (X) Gesamtlänge: | 200,00 mm |
| Shank version: | E (carbide shank with internal cooling) |
| Indexable inserts clearance angle: | C (7°) |
| Turning inserts basic shape: | D (55°) |
