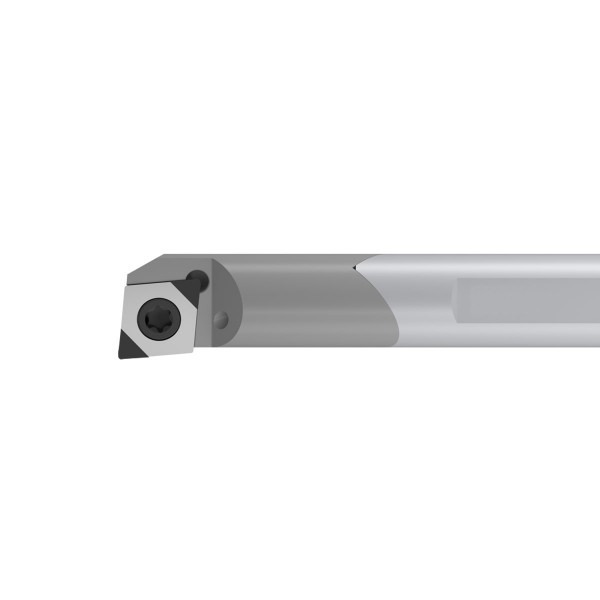

E12X SCLCR 09
right Version | Shaft diameter: 12,00 mm
- Order number: BW6060-1040

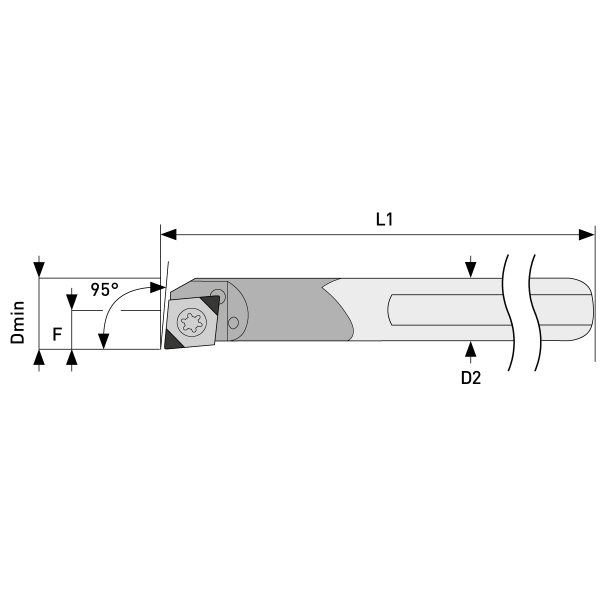

Technical details:
| Angle of attack holder: | L (95°) |
| Dmin: | 15,50 mm |
| D2 Shank diameter: | 12h6 |
| Rotary holder version: | R (right) |
| F: | 9,00 mm |
| Adjustment bevel (45°): | Yes |
| Cutting edge length WSP: | 09 |
| Clamping system: | S (screws clamping) |
| L1 (X) Gesamtlänge: | 180,00 mm |
| Shank version: | E (carbide shank with internal cooling) |
| Indexable inserts clearance angle: | C (7°) |
| Turning inserts basic shape: | C (80°) |
 |  |  |  |
