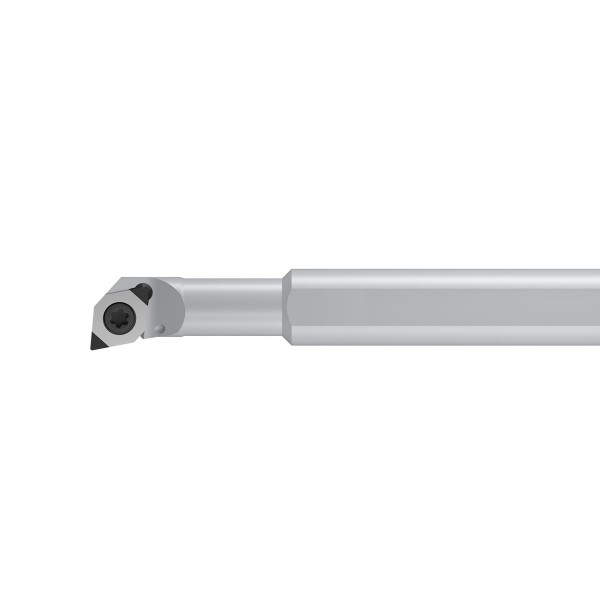

MT0608X SELPR 05

Angle of attack holder:	L (95°)
Dmin:	8,00 mm
D2 Shank diameter:	8h6
Rotary holder version:	R (right)
F:	R0,1=4,52mm / R0,2=4,50mm / R0,4=4,45mm
tx:	R0,1=1,18mm / R0,2=1,16mm / R0,4=1,11mm
Adjustment bevel (45°):	Yes
Cutting edge length WSP:	05
Clamping system:	S (screws clamping system)
L1 (X) Gesamtlänge:	100,00 mm
L2 max. machining depth:	20,00 mm
Shank version:	MT (MiniTool-Shank with internal cooling)
Indexable inserts clearance angle:	P (11°)
Turning inserts basic shape:	E (75°)

Matching indexable inserts:
