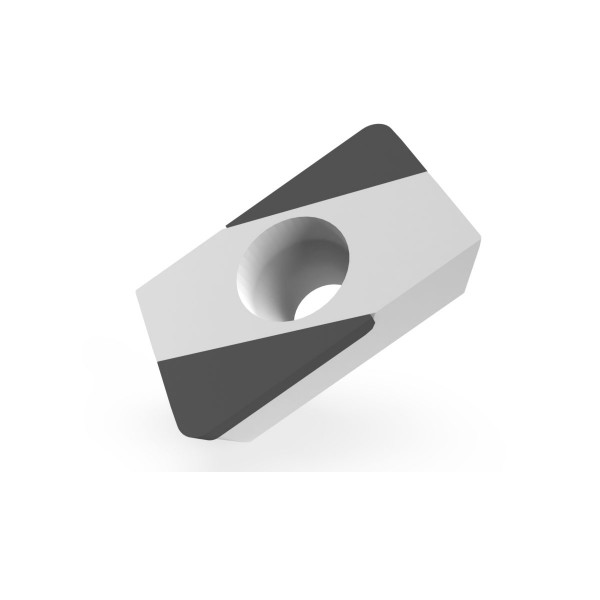

AOEX 07T308 CVD-D

Face / corner milling insert | Cutting edge length: 7,00 mm

  • MI2025-0060

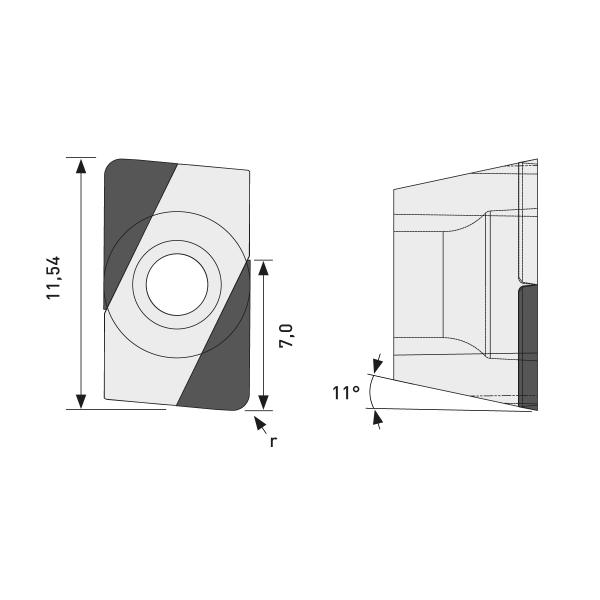

Technical details:

Cutting material: CVD-D
ISO basic shape: A (85°)
Clearance angle: O (11°)
Tolerance: E
Plate type: X
Plate size: 07
Plate thickness: T3 (3,97 mm)
Radius: 08 r=0,8
Radius tolerance: ± 0,015 mm
Teeth-count: 2-edge-tipped
Cutting edge length SKL: 7,00 mm
Cutting edge version: edge-tipped
Application area: Milling

Application range:

  • Titanium
  • Copper
  • Magnesium
  • Brass
  • Brass lead free
  • Tungsten alloy
  • Acrylic (PMMA)
  • CFRP
  • GRP
  • Glass
  • Glass ceramic
  • Carbide >10%Co
  • Ceramics
  • Plastics
  • Copper alloy
  • MMC
  • Gold
  • Silver
  • Platinum
  • Zircon
  • Aluminum >10% Si
