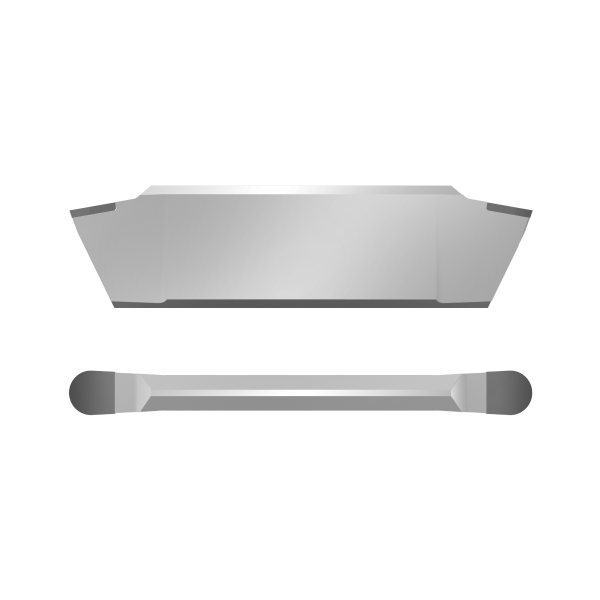

Grooving Insert B 5,00 PCD
Full Radius:-Grooving insert for piercing | Teeth-count: 2 | Radius: 2,50 mm

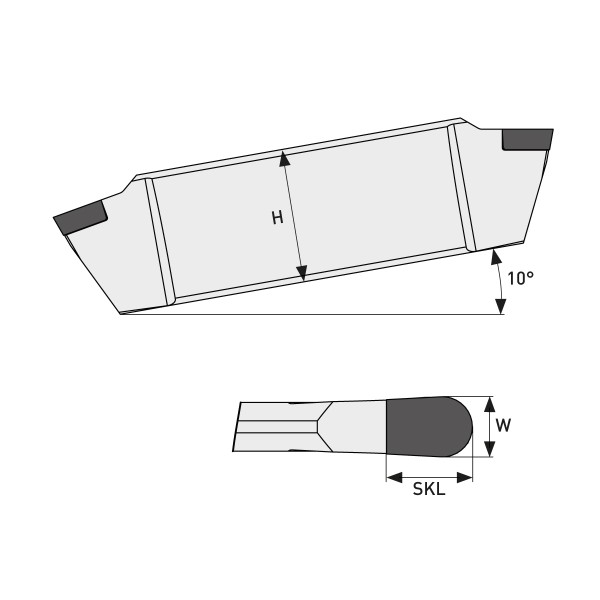

Technical details:
| Cutting material: | PCD |
| Machining: | Groove in |
| Width W [± 0.01]: | 5,00 mm |
| Height H: | 7,90 mm |
| L1 Total length: | 29,90 mm |
| Corner radius: | 2,50 mm |
| Teeth-count: | 2-edge-tipped |
| Angle of attack grooving plate: | 10° |
| max. groove depth tmax.: | 25,00 mm |
| Cutting edge length SKL: | 3,00 mm |
Application range:
- Aluminum <10% Si
- Brass
- Brass lead free
- Carbide green body
- Ceramics green body
- Copper
- Copper alloys
- Graphite
- Magnesium
- PEEK
- Titanium
- Tungsten alloy
