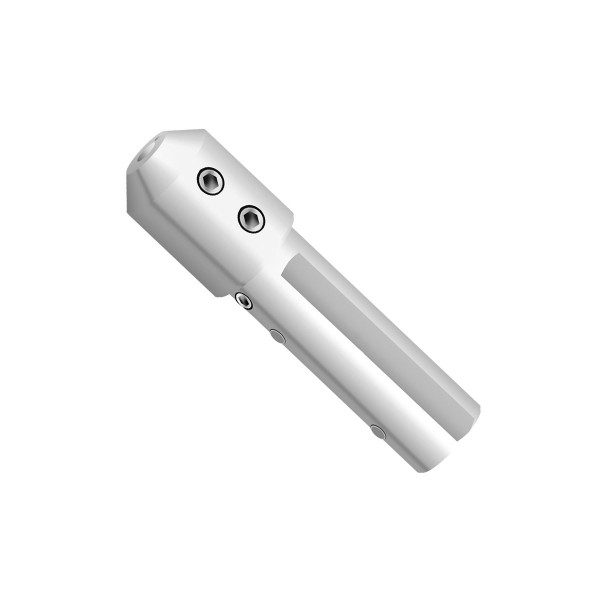

Clamping adapter, round
for shank diameter 4G6 | with internal cooling right
- Order number: BA7090-1001

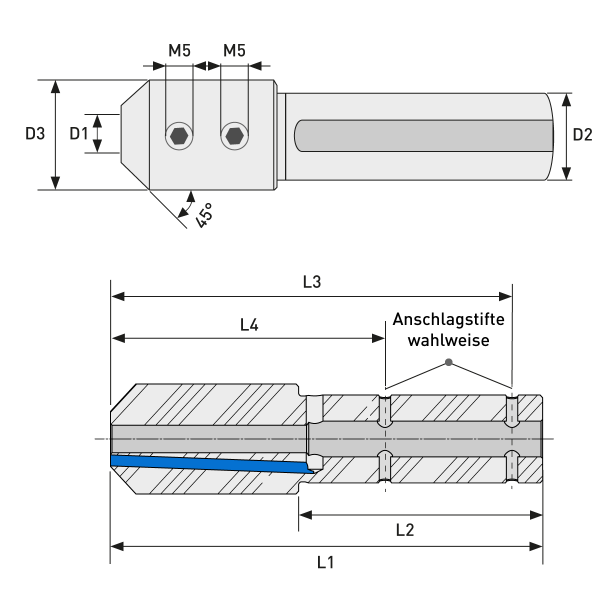

Technical details:
| D2 Shank diameter: | 16h6 |
| D3: | 20,00 mm |
| L1: | 75,00 mm |
| L2: | 48,00 mm |
| L3: | 64,00 mm |
| D1: | 4G6 |
| L4: | 39,00 mm |
Functional description:
- Locating pins: Automatic alignment of the center height by means of the locating pins and 45° slope on the tool. Optional second pin can be used for length adjustment.
Advantages:
- Very good surface on the component
- Very good dimensional stability
- Very high repeatability
