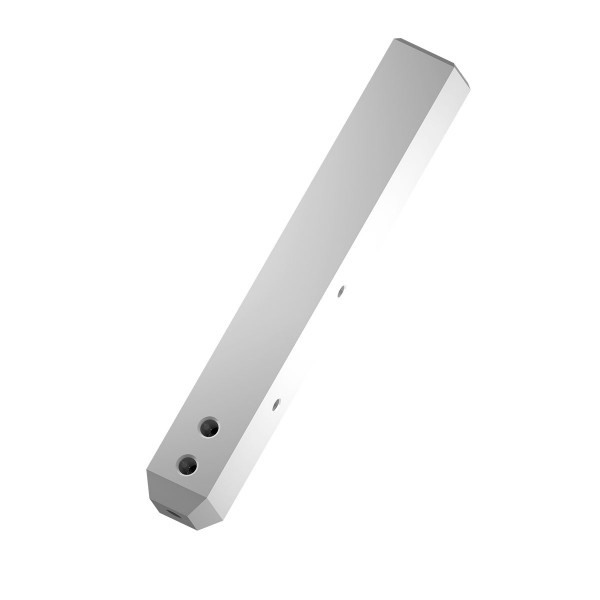

Clamping adapter, 4-sided
for shank diameter 6h6 | Holder cross section 16x16
- Order number: BA7090-4160

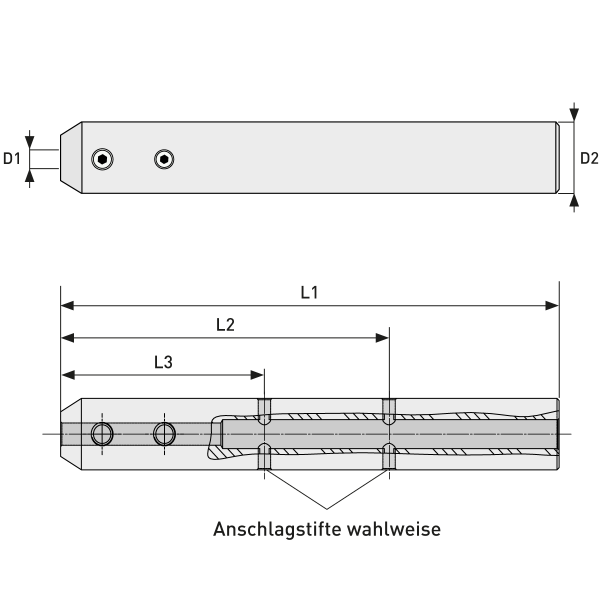

Technical details:
| D1: | 6G6 |
| L1: | 120,00 mm |
| Shank cross-section: | 16x16 |
| L2: | 78,06 mm |
| L3: | 48,06 mm |
Functional description:
- Locating pins: Automatic alignment of the center height by means of the locating pins and 45° slope on the tool. Optional second pin can be used for length adjustment.
Advantages:
- Very good surface on the component
- Very good dimensional stability
- Very high repeatability
